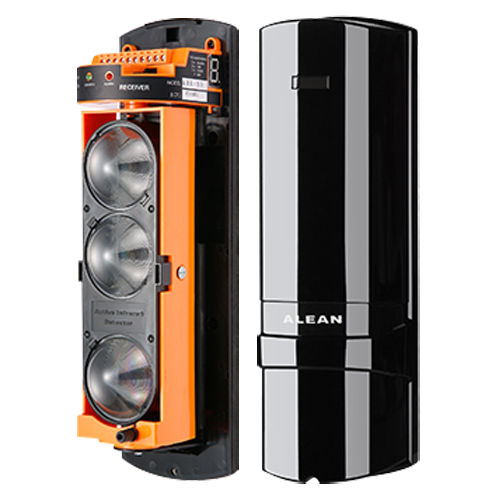

ABE-150

Lagerstatus:På Lager

Varenr.:ABE-150

583,-

Beskrivelse

Detection range	450m indoor / 180m outdoor
Number of beams	3
Detection method	Interruption of the [% VAR%] beams at once
Interruption time	50ms, 100ms, 300ms, 700ms (available)
Frequency channels	4 different channels over DIP Switch
Alarm outputs	1 relay NO/NC (max. 30VDC/VAC, 1A), Tamper NC
Alignment angle	Horizontal 180°(±90°), Vertical 20°(±10°)
Adjustment method	Over LCD Display between 0-99
Operating temperature	-25ºC ~ +55ºC
Degree of protection	IP65
Power supply	12~24 VDC/VAC, 200 mA max.
Dimensions	291 (H) x 92 (W) x 90 (D) mm
