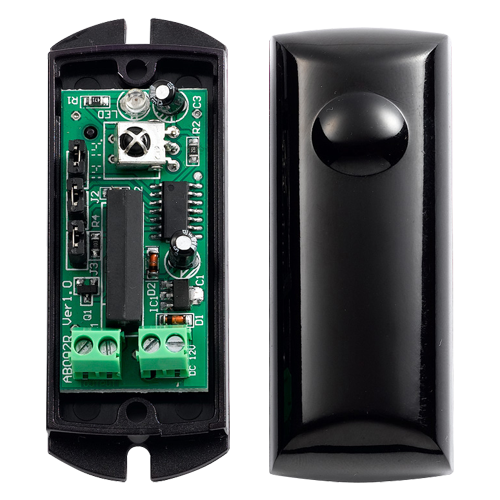

Abo 20f 150x150Abo 20f

ABO-20F

Intet billede sat
Lagerstatus:På Lager
Varenr.:ABO-20F
97,-
  • Infrared barrier detector
  • Wired | 1 beam
  • Max distance. detection 10 / 20 m
  • Smaller size and easy installation
  • Relay
  • Power supply 9~16VDC/VAC
+ -
Tilføj Til Ønskeliste
Sammenlign Produkt
Stil et Spørgsmål

Beskrivelse

Detection range20m indoor / 10 m outdoor
Number of beams1
Detection methodInfrared beam interruption
Frequency channels4 different channels over DIP Switch
Alarm outputs1 relay NO/NC (max. 36VDC/VAC, 1A)
Adjustment methodOver LED
Operating temperature-25ºC ~ +55ºC
Power supply9~16 VDC/VAC, 20 mA max.
Dimensions69.5 (H) x 26.4 (W) x 22.5 (D) mm
