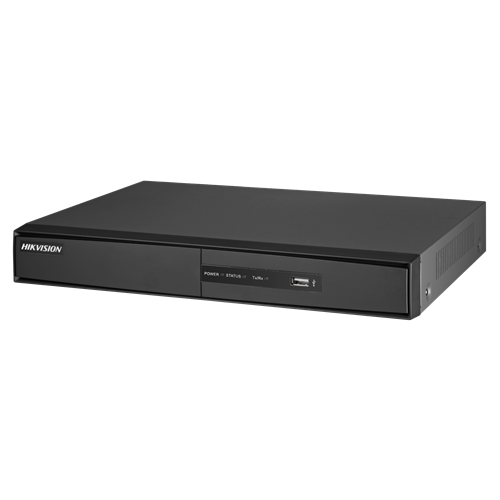

DS-7216HQHI-F1NA

Lagerstatus:Bestillingsvare 0 stk.

Varenr.:DS-7216HQHI-F1NA

2.425,-

Beskrivelse

Brand	HiWatch Hikvision
Video format	HDTVI / AHD / CVBS / IP
Video inputs	BNC / HDTVI / AHD & CVBS channels
Hybrid configuration	¡16 Channels from BNC and 2 Channel IP (1080p)
Video outputs	1 HDMI, 1 VGA, 1 BNC (CVBS) Regardless
Audio inputs	1 Channel RCA
Audio outputs	1 Channel RCA
Bidirectional audio	Reusing the audio input/output
Video / audio compression	H.264+ / H.264 / G.711u
Display resolution	1920x1080, 1280x1024, 1280x720, 1024x768
Recording resolution	1080p / 720p / WD1 / 4CIF /VGA / CIF
Main Stream coding	1080p (1~12 FPS) / 720p / VGA / WD1 / 4CIF / CIF (1~25 FPS)
Extra Stream coding	WD1 / 4CIF / 2CIF (1~12FPS) / CIF / QVGA / QCIF (1~25 FPS)
Simultaneous multifunction	Pentaplex: Live, Recording, Playback, Backup and Remote Access
Alarms	4 Inputs / 1 Relay NO/NC
Video analysis	VCA: Line crossing and area intrusion
Recording method	Manual, programmed, motion detection, alarm
Backup	USB (Memory, HDD, CD-RW, DVR-RW) / Network
Internal memory	1 HDD SATA 3.5" of up to 6TB (not included)
Communication	RS485 (PTZ) / 2 x USB (Mouse and backup) / RJ45 (Ethernet)
Remote access	Web browser, Smartphone App IVMS4500 and PC Software IVMS4200
Power supply	DC 12V / 30W
Dimensions / Weight	45 (H) x 315 (W) x 242 (D) mm / 2 Kg
