XS-XVR6432A
Lagerstatus:På Lager
Varenr.:XS-XVR6432A
6.886,-

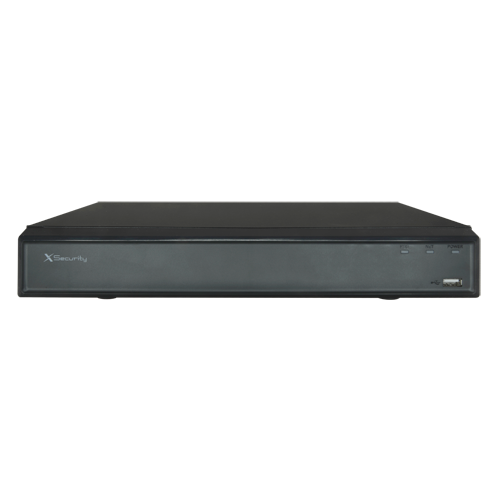

- X-Security 5n1 1080p (12FPS) Recorder
- 32 CH HDTVI / HDCVI / AHD / CVBS / IP
- Audio over coax
- Alarms (16/6) | 4 CH audio
- Full HD HDMI and VGA Output
- Space for 4 hard disks
Beskrivelse
| Brand | X-Security |
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 32 Channels BNC (HDTVI / HDCVI / AHD / CVBS) |
| Hybrid configuration | Up to 32 IP Channels (5Mpx), replacing all the BNC channels |
| Video outputs | 2 HDMI Full HD, 1 VGA, 1 TV |
| Audio inputs | 4 BNC Channel |
| Audio outputs | 1 BNC Channel |
| Bidirectional audio | Reusing the audio input/output |
| Video / audio compression | H.264+/H.264 |
| Display resolution | 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Recording resolution | 1080p / 1080n / 720p / 960H / D1 / HD1 / BCIF / CIF / QCIF |
| Main Stream coding | 1080p (1~15 FPS) / 1080n / 720p / 960H / D1 / HD1 / BCIF / CIF / QCIF (1~25 FPS) |
| Extra Stream coding | D1 / CIF / QCIF (1~15 FPS) |
| Simultaneous multifunction | Pentaplex: Live, Recording, Playback, Backup and Remote Access |
| Alarms | 16 Inputs / 6 Relay NO/NC |
| Video analysis | VCA: Tripwire / Area intrusion / Abandoned object / Face detection |
| Recording method | Manually, programmed, motion detection, alarm, stop |
| Backup | USB (Memory, HDD, CD-RW, DVR-RW) / Network |
| Internal memory | 4 HDD SATA 3.5" of up to 8TB (not included) |
| Communication | RS485 (PTZ) / RS232 / RS422 / 3 x USB (Mouse and backup) / RJ45 1000 (Ethernet) |
| Remote access | Web browser (ActiveX), mobile phone application or PSS software |
| Power supply | AC 100~240V |
| Dimensions / Weight | 417 (H) x 440 (W) x 76 (D) mm / 6 Kg |
