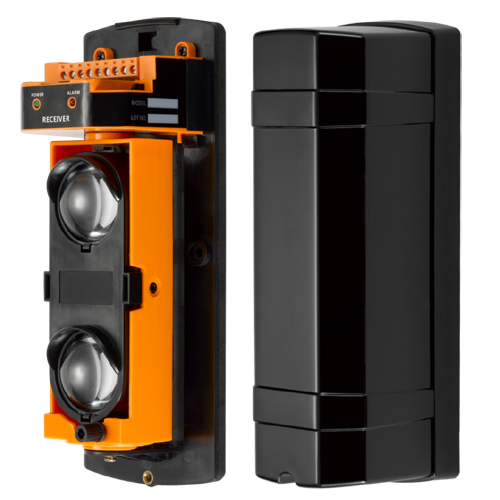

AB-60

Lagerstatus:På Lager

Varenr.:AB-60

350,-

Beskrivelse

Detection range	180m indoor / 60m outdoor
Number of beams	2
Detection method	Interruption of the [% VAR%] beams at once
Interruption time	50ms, 100ms, 300ms, 700ms (available)
Frequency channels	4 different channels over DIP Switch
Alarm outputs	1 relay NO/NC (max. 30VDC/VAC, 1A), Tamper NC
Alignment angle	Horizontal 180°(±90°), Vertical 20°(±10°)
Adjustment method	Over LCD Display between 0-99
Operating temperature	-25ºC ~ +55ºC
Degree of protection	IP65
Power supply	12~24 VDC/VAC, 75 mA max.
Dimensions	211.5 (H) x 79.9 (W) x 74.7 (D) mm
